EN 10149-2 GRADE S700MC
EN 10149-2 GRADE S700MC PLATES
S700MC Plates, EN 10149-2 Steel plate, S700 MC EN 10149-2 structural steel Plates, ASTM A514 High yield EN10149-2 Grade S700MC cold-forming Plates, PERFORM 700 Heavy Steel Plates Exporters, Suppliers and Stockists in India.

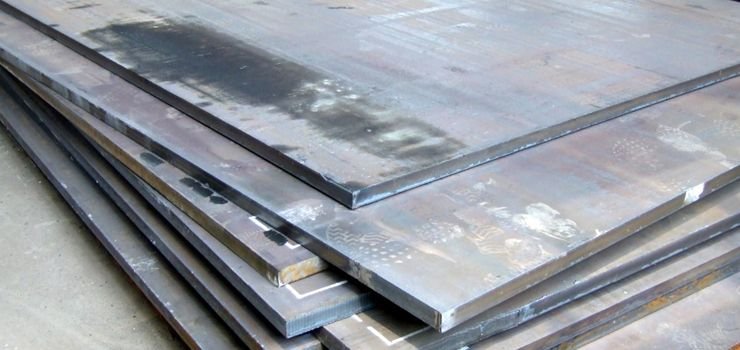

We at Kailash steel trade, manufacture and supply EN 10149-2 Grade: S700MC plates. We have a range of products that are quality tested and offer amazing usability.
Our S700MC plates are structural steels developed for applications that require high yield strength. It can be used in many load bearing applications for its high yield. The steel is widely used in cold pressed parts and sections. S700 bears amazing welding and forming properties. The strength that if offers makes it usable in steel frames, pipes and load bearing beams. Our products are available to our customers in customizable options to meet their specific requirements.
We have a highly equipped infrastructure facility where we develop products that are reliable and offer maximum utility.
Equivalent Grades of EN 10149-2 S700MC Steel Plate
| S700MC EN 10149-2 Number:1.8974 |
Comparision of steel grades | |
| SEW092 | QStE 690TM | |
| NFA36-231 | E690D | |
| UNI8890 | – | |
| ASTM | A514 | |
| BS1449 | 75F70 | |
Chemical Composition of EN S700MC steel,by %
Content % (ladle analysis), maximum
| C max |
Si max |
Mn max |
P max |
S max |
Al max |
Nb max |
V max |
Ti max |
Mo max |
B max |
| 0.12 | 0.6 | 2.1 | 0.025 | 0.015 | 0.015 | 0.09 | 0.2 | 0.22 | 0.5 | 0.005 |
Mechanical properties According to EN10149-2 High Tensile Plate
| Nominal Thickness (mm) | Yield Strenght (MPa) | Tensile Strenght (MPa) | Elongation A | Temperature (°C) | Notch Impact Energy (J) | |
| Total Elongation A80% < 3mm | Total Elongation A5% ≥ 3 | |||||
| ≤ 15 | ≥ 700 | 750-950 | ≥10 | ≥ 12 | -20°C | ≥ 27 |
