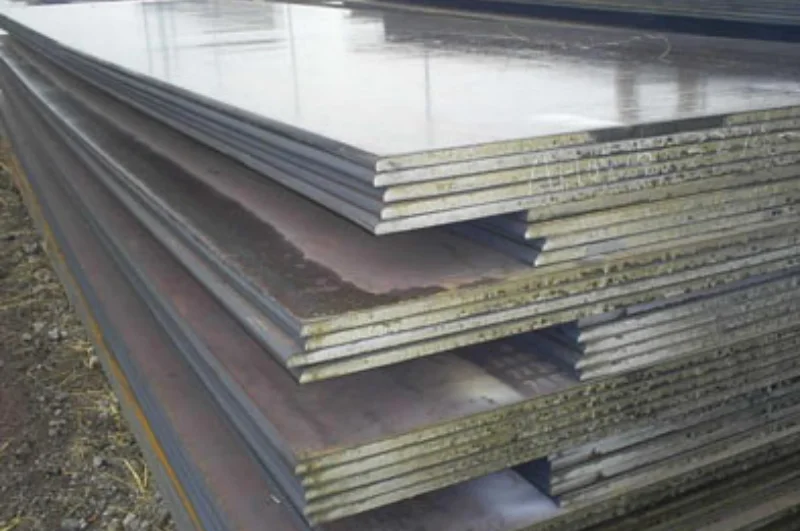

Boiler Quality Plates
The boiler quality and pressure vessel steel plates are primarily intended for use in welded pressure vessels where notch toughness is important
These grades cover a range of tensile strengths from 450 – 620 MPa and this versatility explains much of the specifications popularity.
The common attributes of boiler plates are high strength, efficient low-temperature toughness, high corrosion resistance, high resistance to HIC, SSCC and embrittlement, high creep resistance and durability. Fabricated using best of raw materials and procured from well-known vendors, the boiler quality plates we offer are high in quality and competent in performance products. These plates are widely demanded and used by a large variety of industries.
| Specification | Chemical Properties | Mechanical | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C Max | Mn Max | Si MAX | S MAX | PC MAX | E | Tensile MIN | Yield Min | %EL 50 GL | %EL 200 GL | Mpa.min | ||
| BEND | IMPACT | |||||||||||
| ASTM-516 | ||||||||||||
| Gr-60 | 0.23 |
0.85/1.2 |
0.15/0.40 |
0.04 |
0.035 |
0.42 |
415/550 |
415/550 |
25 |
21 |
1.5t |
(-)46°C/18J |
| Gr-70 |
0.28 |
0.85/1.2 |
0.15/0.40 |
0.04 |
0.035 |
0.43 |
485/620 |
485/620 |
21 |
17 |
2t |
(-)46°C/20 J |
| ASTM-515 | ||||||||||||
| Gr-60 | 0.22 |
0.90 |
0.15/0.40 |
0.035 |
0.035 |
— |
415/550 |
415/550 |
25 |
21 |
1.5t |
|
| Gr-70 |
0.31 |
1.20 |
0.15/0.40 |
0.035 |
0.035 |
— |
485/620 |
485/620 |
21 |
17 |
2t |
